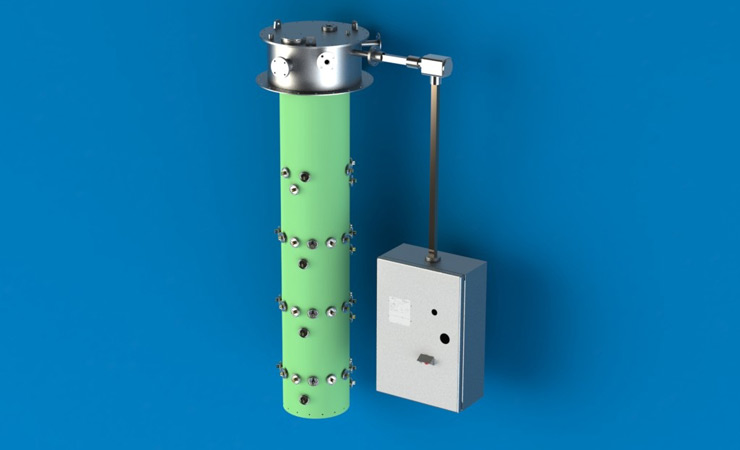

  1. In-Tank-OLTC-Type-T19

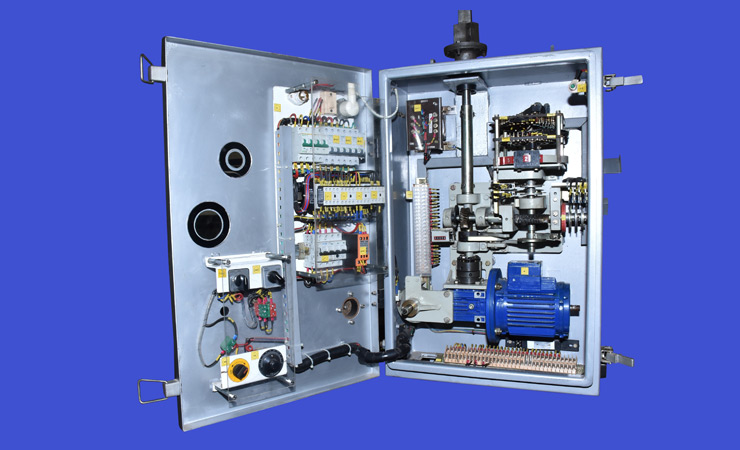

  2. Drive-Mechanism-18

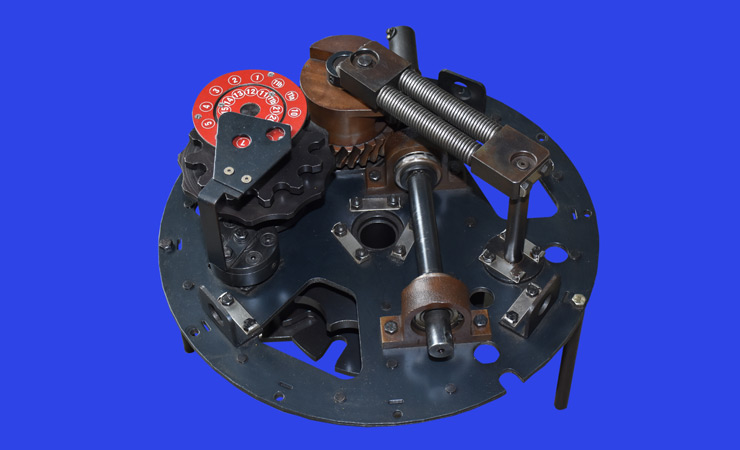

  3. Energy-Storage-Assembly-1

T19-In-Tank-OLTC Type RMV

Technical Details:-
Type RMV
VOLUME of Oil 350 Liters
Maximum Rated Voltage 110 kV
Maximum Continuous Current 200 A
Type of Winding Coarse Fine/Reversing.
Number of Positions 23
Maximum Step Voltage 1650 V
Max. Operating Voltage between First and Last Tap 16500 V
Power Frequency with stand Voltage
Between first tap and last Tap 50 kV RMS
All live parts to ground 230 kV RMS
Impulse withstand Voltage
Between first Tap and Last Tap 150kVp
All live parts to ground 550kVp
Weight 400 kg
Mechanical Operations 5,00,000
