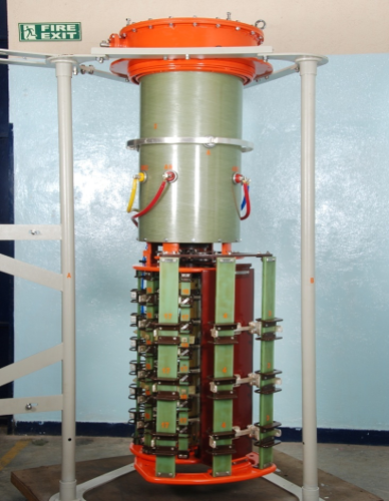

PG-OLTC

PARAMETERS: PG -OLTC	AP
Maximum Voltage	– 220 kV
Maximum Current	– 500A (3θ),1200 A (1θ)
Maximum Step Voltage	– 3300 V
Winding arrangement	– Y/Δ [Linear/ Reversing/ Coarse-fine]
Max. no of tapping position	– 35 (Higher no. with multiple Pre-sel.)
OLTC Design	– Double Compartment
Mounting	– In-tank (Bell Type Mounting)
Typical Application	: Up to 220 kV Neutral End Power (up to 500 MVA) / Furnace/ Rectifier Transfor
