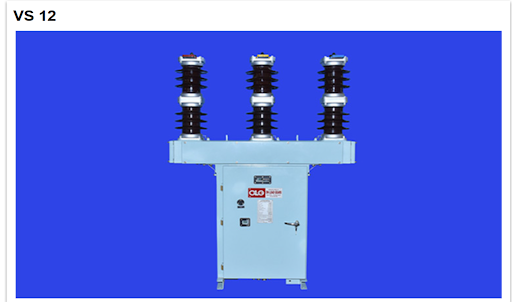

VS-12

Specification
Type reference	VS12
Applicable standard	IEC 62271-100/IS 13118
Rated voltage	11kV
Rated normal current	1600A
Operating Sequence	O-0.3sec-CO-3min-CO
Rated power Freq. withstand	28kV
Rated impulse withstand voltage	75kVp
Rated short circuit breaking current	26.3kA
Rated closing/tripping voltage	24/30/48/110/220V-DC
First pole to clear factor	1.5
Rated duration of short circuit	3sec
