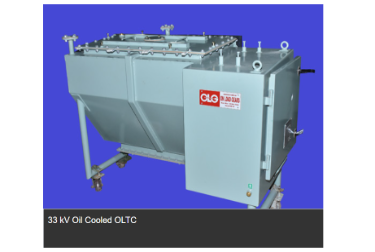

  1. 33kv

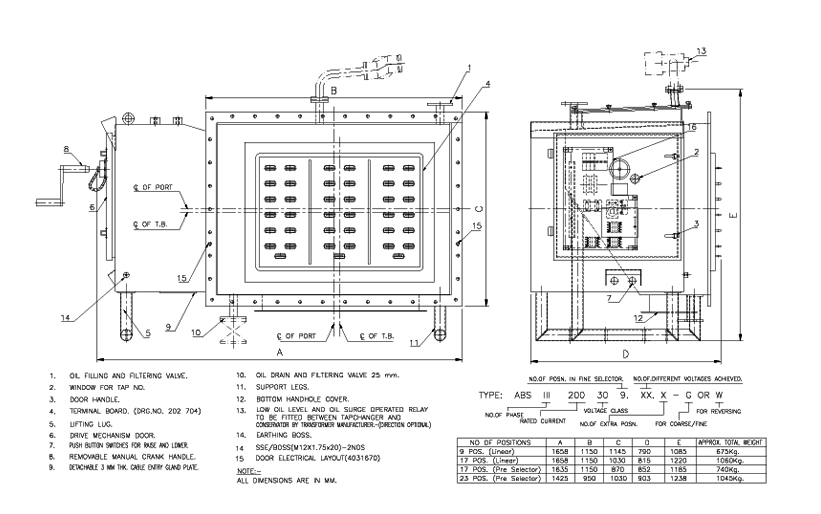

  2. Dimension

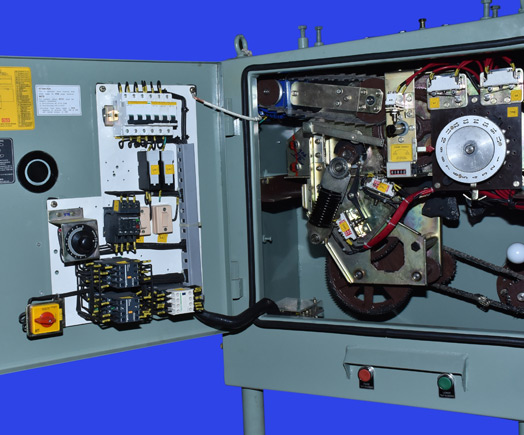

  3. Drive-Mechanism-2

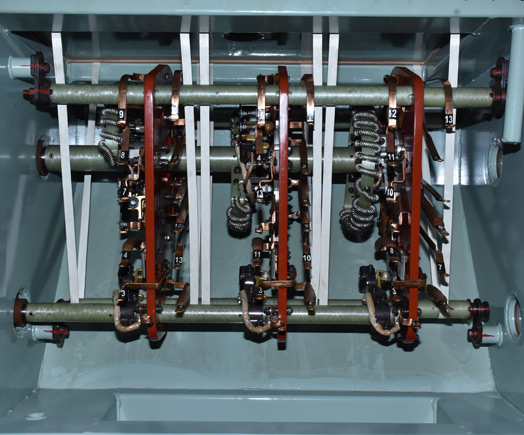

  4. Power-Switch-Assembly-2

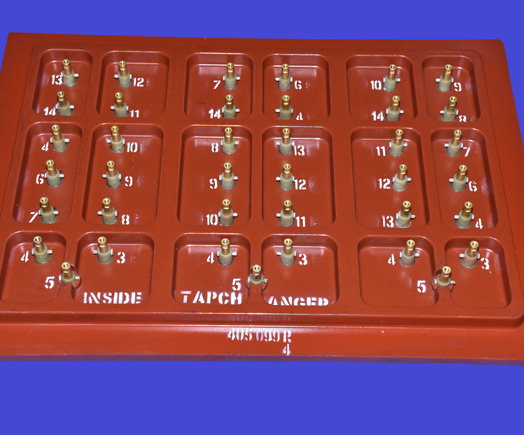

  5. thermalboard

ABS 33 KV CLASS

Parameters ABS 33KV Coarse Fine/Reversing
Type Linear Coarse Fine/Reversing
Max Number of Position 9&17 17/23
Max Step Voltage (V) 850 850
Max Current Rating (A) 200/300/500 200/300/500
Short Circuit withstand Current 5KA 5KA
Time to complete Tap 4-6 sec 4-6 sec
Mechanical Operations 5,00,000 5,00,000
Oil Qty (Ltrs) 658 390/670
Flange Dimensions (mm) 1150X1030 1150X870/680X1030
